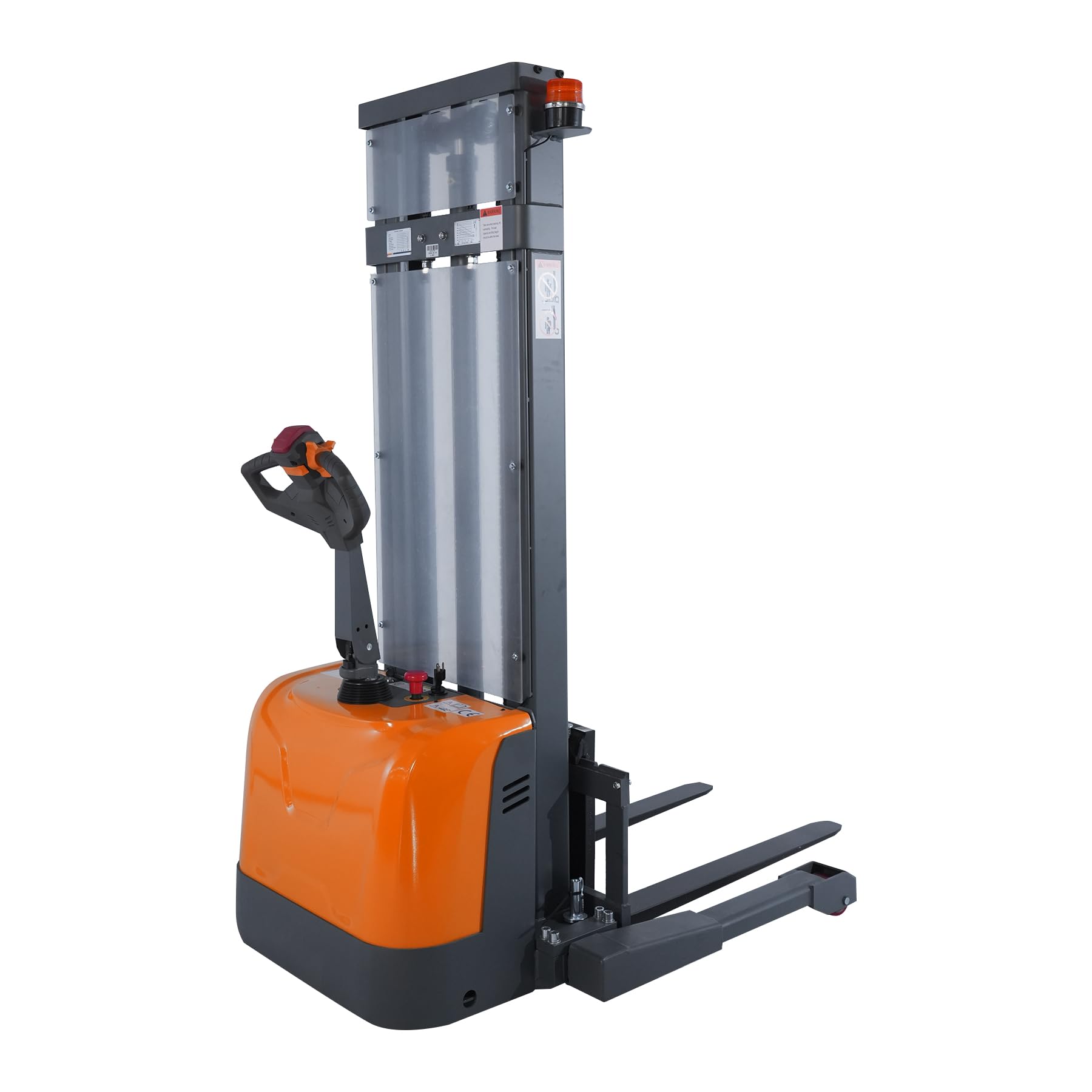

Tory Carrier Full Electric Walkie Stacker - 3300lbs Capacity, 98" Lifting Height, Adjustable Forks & Straddle Legs - Ideal for Warehouse Material Handling & Pallet Stacking
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:27 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:66696794
Product Description
Product Details The drive unit have small turning radius,the motor and brake is very easy to replace.Back cover is integrated type design,easy to assemble and maintain.Compact design and small dimensions,offer excellent visibility.Low gravity design,4 point design,improve the trucks stability.Built in charger easy to access to power supply.Use GEL battery free to maintain. Scope Of Application Product Related Dimensions Load Capacity 2640 lbs Height.Mast Lowered 74.6 inch Max.Lifting Height 98 inch Height.Mast Extended 122 inch Overall Length 70 inch Overall Width 44-60 inch
Product Features

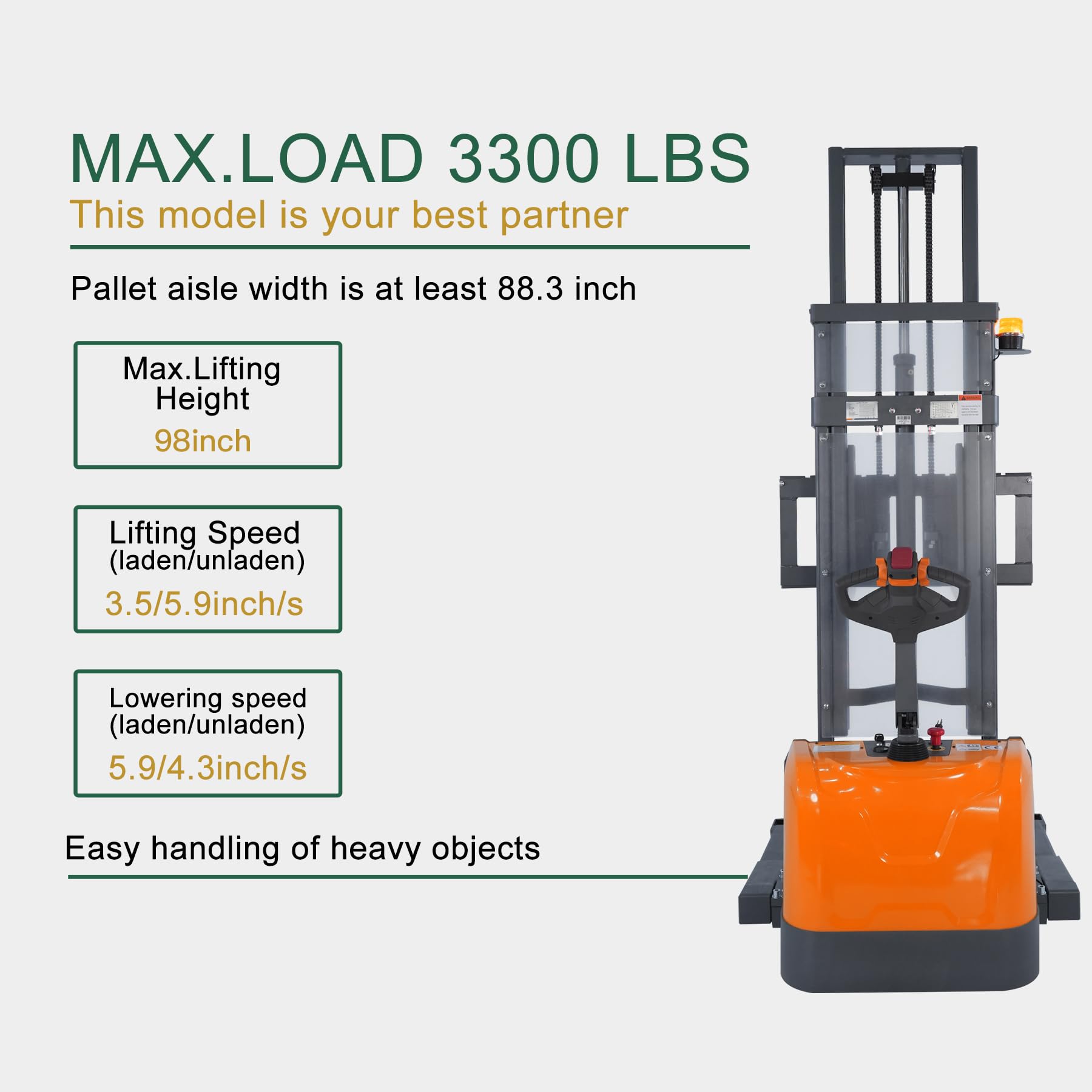

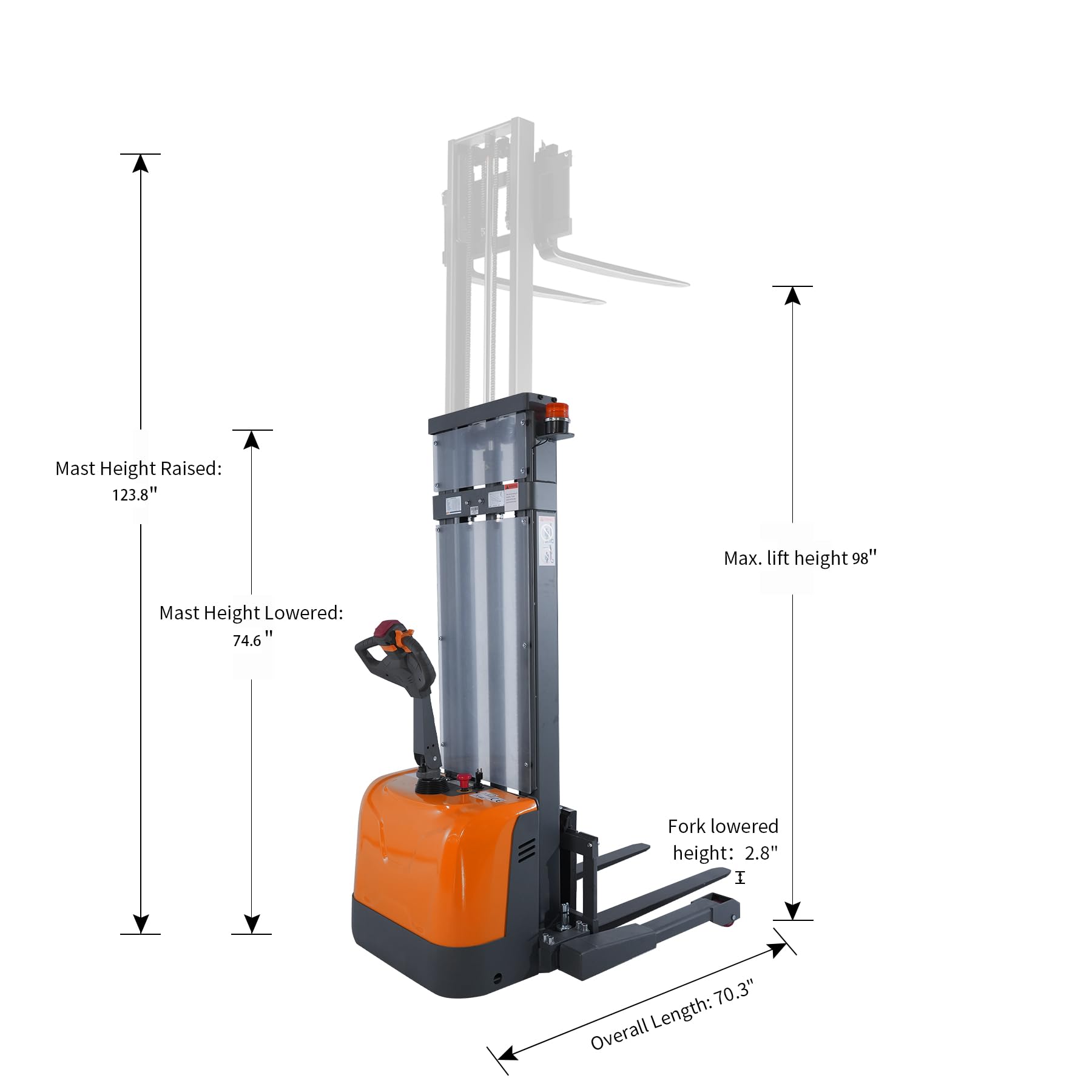

Loading Capacity 3300 lbs, Max lift height 98" | fork lowered height 2.8" | Height (mast lowered) 74.6", Height (mast extended) 123.8" | Min turning radius 52.9" | Aisle width 88.3"
Small and compact, ideal for cargo handling, stacking, and order-picking tasks. Perfect for replacing manual stackers. Please note the item is designed for flat surfaces, do not use it on uneven grounds with potholes or steep slopes
Built-in Safety Explosion-Proof Valve The cylinder includes a safety explosion-proof valve that prevents free-fall of the load, even if the hydraulic hose ruptures, ensuring operator safety. Equipped with warning lights, buzzer, beeps during maneuvering
Multi-function handle Forward and backward movement and elevation are all controlled by handles. Extras include emergency brake and reverse buttons, creep speed button and upright walking function
Three-Point Structure centrally mounted drive wheel, enhancing stability and preventing drive wheel slippage
Lower gravity design Lowered hydraulic station and battery design for a lower gravity center and less swaying
Upgraded structures Overhead drive wheel design, the motor is higher off the ground to prevent water, dust and oil from entering. The interior wiring harness includes multiple fuses to protect various electrical components
Customer Reviews
Great little pallet stacker. Only thing I wish I would have paid attention to when i set it up was how wide I set the outrigger feet. But it does really well and once charged it holds a charge for a while.
